I-343 PCI-E 4S Serial Card

2013/11/18

4 x DB9 male serial connectors
Data transfer rate up to 230400bps

  • Ordering Code: I-343
  • Part No: IE-N50-5140-00-00012
  • Solution: MCS9904

Specification:

* Compliant with PCI Express Base Specification 1.1

* Supports 4 x UART serial port

* Built-in 16C450/550 compatible UART

* On chip 256 byte FIFOs in transmit and receive path of each serial port

* Data transfer rate up to 230400bps



Bus:  * PCI-Express x1



Connectors: * 4 x DB9 male serial connectors



System Requirements:

* Windows XP/Vista/7/8.x/10 (32/64 bit)

* PCI Express-enabled system with an available PCI Express slot



Accessories:

1 x Bracket with two DB9 male serial ports

1 x Driver CD

1 x User Manual



Packing Information:

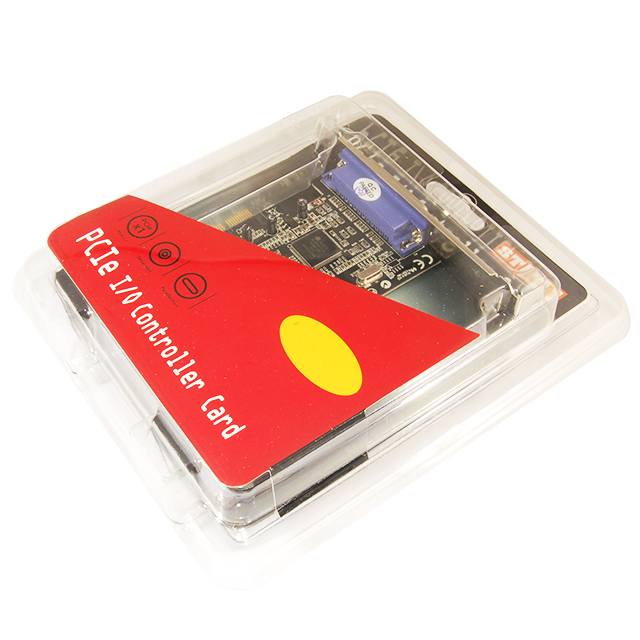

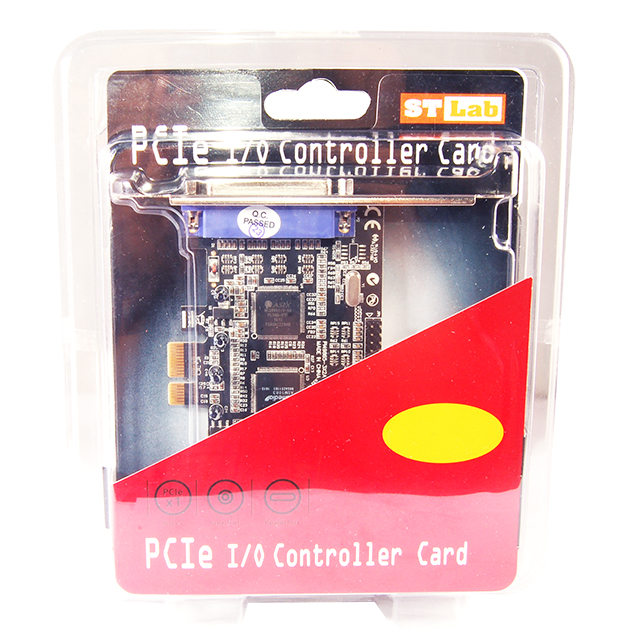

* Retail Blister Packing

* 40pcs. Per carton

* Measurment: 56.5 x 36.1 x 43 cm

* G.Weight: 9.2 Kg ; N.Weight: 8.2 Kg
