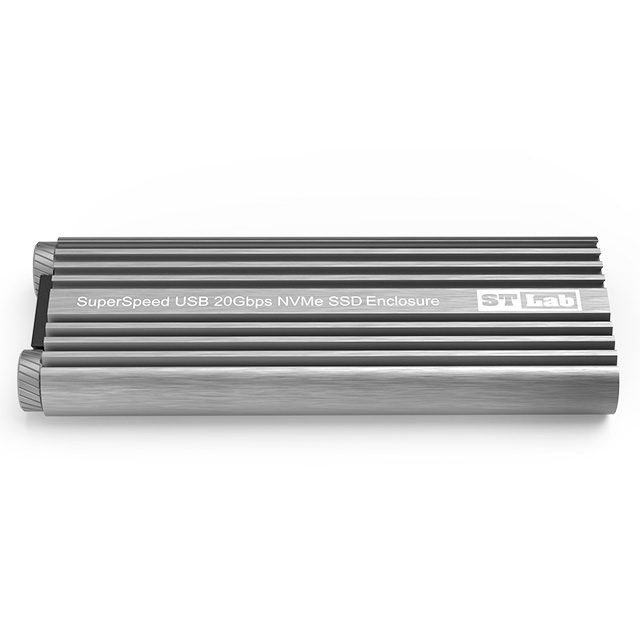

S-390 USB 20Gbps Type-C NVMe SSD Enclosure

2020/08/07

Data rate up to 20Gbps.
Supports PCIe 3.0 x4 M.2 NVMe SSD
Supports 2280, 2260 2242 and 2230 M.2 form factors
LED status

  • Ordering Code: S-390
  • Part No: U3-A60-DH10-11-00012
  • Solution: ASM2364

Features

Compatible with SuperSpeed USB 20Gbps, SuperSpeed USB 10Gbps, SuperSpeed USB 5Gbps, High Speed and Full Speed

Data rate up to 20Gbps

Supports PCIe 3.0 x4 M.2 NVMe SSD

Supports 2280, 2260 2242 and 2230 M.2 form factors

LED status

ON: Good linkage between the Enclosure and the host.

BLINK: Activity (Reading or writing) with the Enclosure.

OFF: The Enclosure is disconnected from the host.



System Requirements

Windows 7/8/8.1/10; Mac OS 10.8 or later; Linux 2.6.24 or later

One available USB-C port



Package Contents

1 x SuperSpeed USB 20Gbps Type-C NVMe SSD Enclosure

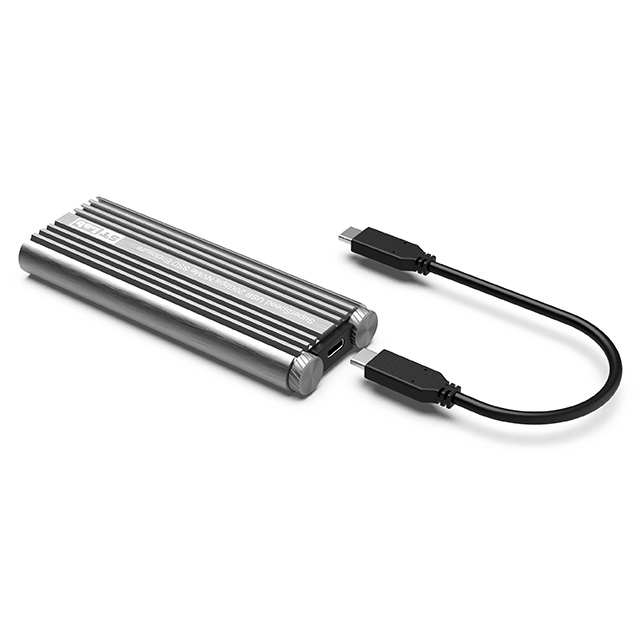

1 x 30cm USB 3.2 Gen 2x2 USB-C to USB-C cable

1 x Thermal Pad

1 x User Manual

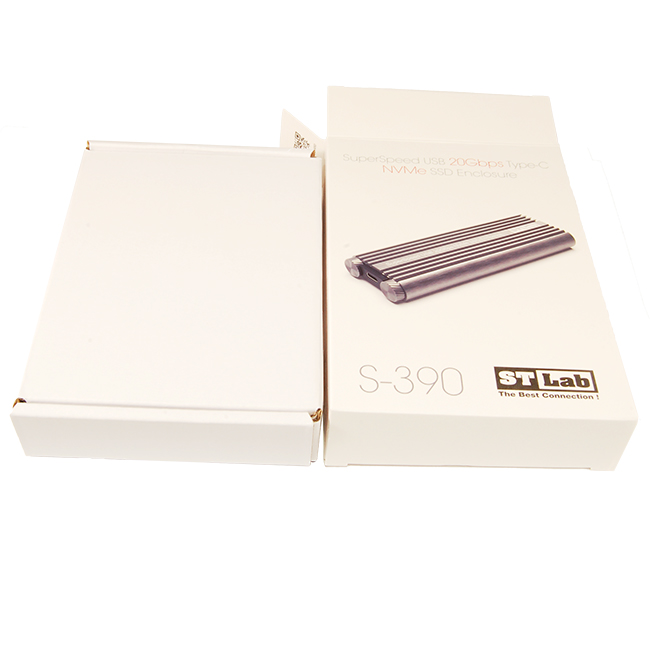

Packing Information

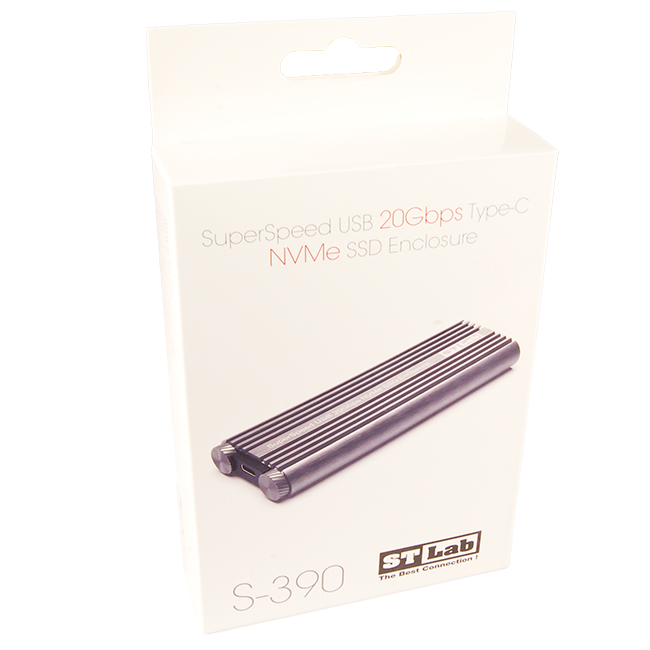

* Retail Box Packing

* 40 pcs. Per carton

* Measurment: 35 x 30 x 23 cm
