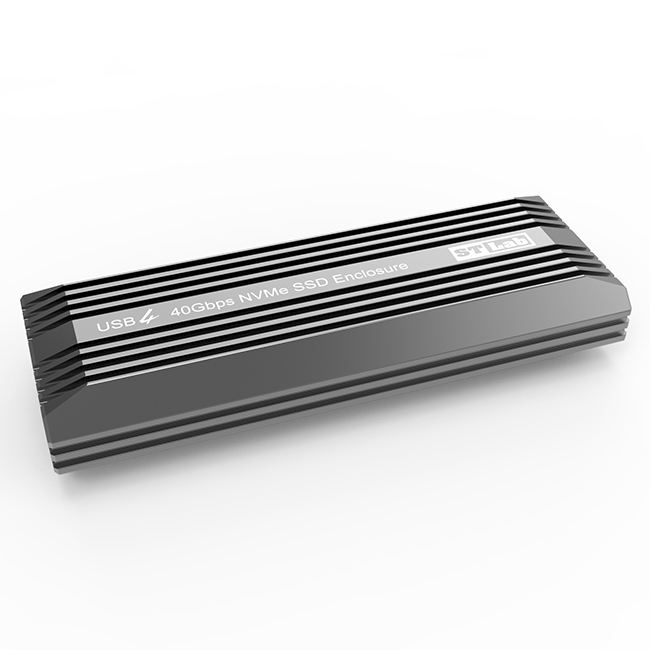

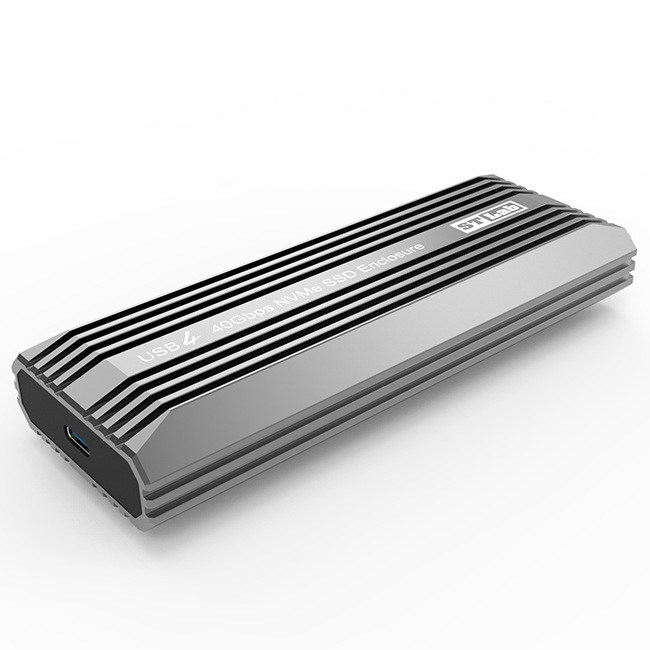

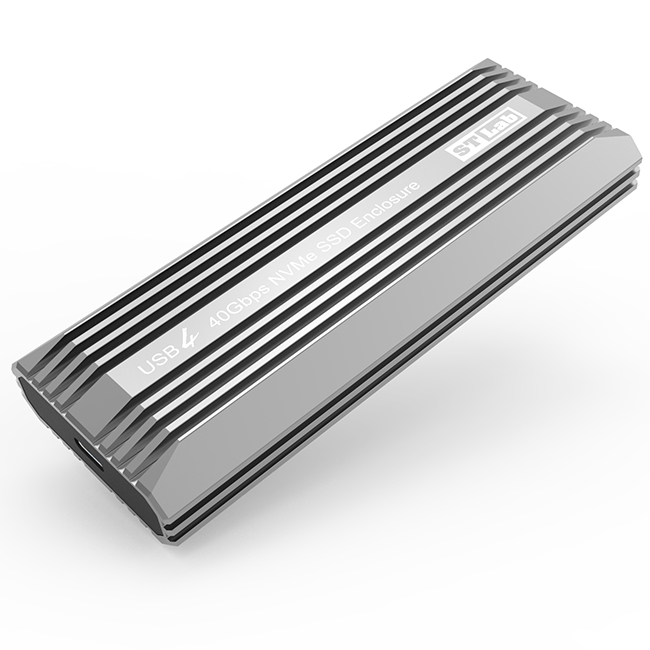

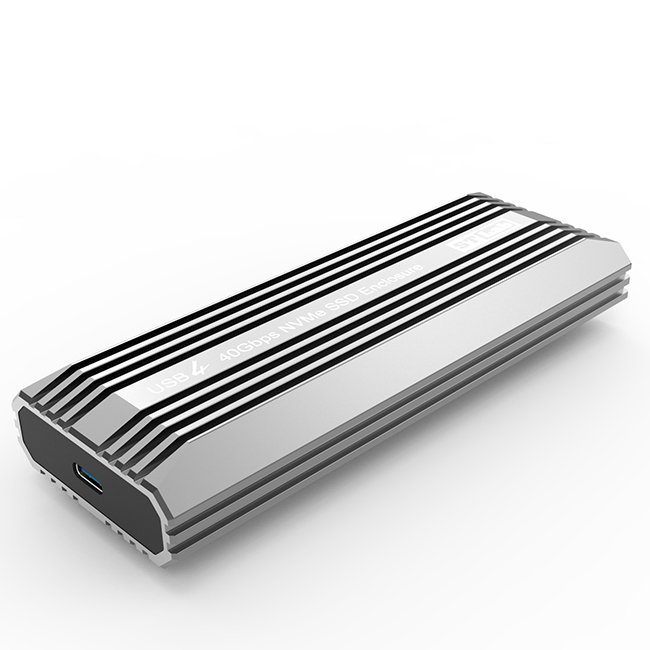

S-400 USB4 40Gbps NVMe SSD Enclosure

2024/01/22

40Gbps bandwidth
Supports PCIe Gen4 x4 NVMe SSD at 2280 / 2260 / 2242 / 2230 M.2 form factor
Compatible with Thunderbolt 3 and 4 host

  • Ordering Code: S-400
  • Part No: U4-A64-DH10-11-00012
  • Solution: ASM2464PD

This specification defines a portable USB NVMe SSD enclosure that is  capable of achieving ultra-fast file transfer speeds for data backup or  external storage applications.

By employing the latest USB4 technology,  this device can deliver up to 40Gbps bandwidth, which is comparable to  Thunderbolt 3/4 technology, while still enjoying the economical price  range of the USB ecosystem.

The tool-less mechanical design enhances  user-friendliness during the installation of M.2 SSDs, and the aluminum  housing provides outstanding thermal performance for reliable and  heavy-duty operation.


Features

Supports USB4 Gen3 x2 Type-C host connection of up to 40Gbps

Backward compatible with USB 3.2 and USB 2.0

Supports BOT and UAS protocols

Supports PCIe Gen4 x4 NVMe SSD at 2280 / 2260 / 2242 / 2230 M.2  form factor

Bus-powered device, supports USB Power Delivery over Type-C

Tool-less design for trouble-free M.2 SSD drive installation

Aluminum housing acts as large heat sink for the SSD drive

Plug-n-play, no installation of software driver is needed

Compatible with Thunderbolt 3 and 4 host


Systems Requirements

Operating systems supported are (both 32 and 64 bits)

Windows 11/10/8.x/7

Linux

Apple macOS X 1.4


Package Contents

1 x USB4 40Gbps NVMe SSD Enclosure

1 x 30cm USB4 USB-C to USB-C cable

1 x Thermal Pad

1 x User Manual
